What is a Bottle Capping Chuck?

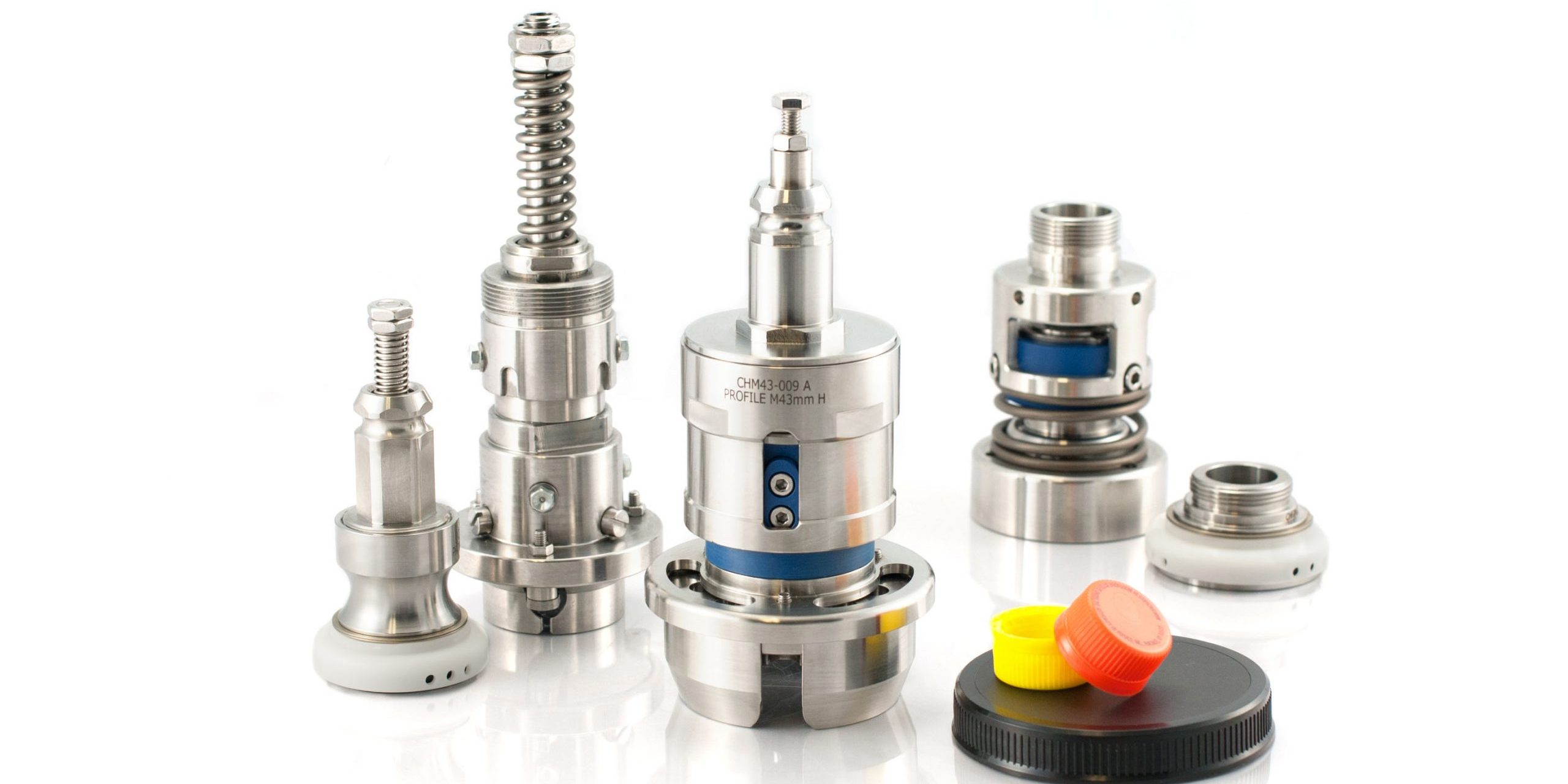

A bottle capping chuck is a tool that is used by a capping machine to grip the cap of a bottle so that it can be removed or applied. There are many different types of capping chucks, including those that are made of metal, plastic, and even rubber. Although, most are made out of stainless steel. Here at Precision Tork, our bottle capping chucks are made from 100% stainless steel. Each type of capping chuck has its own advantages and disadvantages, so it is important to choose the right one for the capping machines that you have.
A capping chuck is an important part of the capping process because it applies the torque needed to properly tighten the cap onto the container. The capping chuck must be properly sized for the cap being used and must also be compatible with the capping headset. When choosing a capping chuck, it is important to consider the type of cap being used, the compatibility of the chuck with the headset and how the chuck will be actuated and used on the machine.
Different Types of Bottle Capping Chucks
- Fixed: The most common type of chuck is the fixed chuck, as they fit the needs of most automatic and semi-automatic capping machines. These types of chucks are designed to fit one specific cap design and one color. They are typically composed of a single piece and have no moving components.
- Flex: Flex chucks are chucks that have floating “teeth” or “segments”. These teeth interface with the knurls of the cap and are allowed a small amount of motion. The advantage of such a design is that one chuck can be used for different colored caps. Caps will vary in size with changes in color.
- Mechanical: Mechanical chucks have articulating jaws that clamp onto the cap. Mechanical chucks require an actuation rod to open and close the jaws at the appropriate time.
- Pneumatic: Like mechanical chucks, these have articulating jaws. The difference is that these chucks are driven with air pressure. These chucks will require air pressure for actuation so the machine will need to be fitted with solenoids to turn the air on and off at the correct time.
When To Use Each Kind
- Fixed: Caps that have knurls that can be inserted into a chuck and are an ideal candidate for a fixed chuck. If more than one color is going to be used then a close analysis of the cap size will need to be done to make sure they will all work in the same chuck. Quite often, if there are several cap colors then there may be a need for a flex chuck. This chuck will last the longest and can be engineered to fit your cap perfectly. This chuck also has the lowest cost of maintenance.
- Flex: Use this when your cap design could be run with multiple colors. Even though the caps use the same design, the different dyes used to make the colors are different. Different dyes often result in different shrinkage rates when the caps are molded and that affects how the chuck holds the cap. Flex chucks are designed to accommodate these differences and can deliver reliable performance.
- Mechanical/Pneumatic: Use this when you have a cap with an obstacle between the torquing chuck and cap or if the cap is smooth with no knurls and rubber inserts are needed to transmit torque. An example of a cap that would need something like this is a cap with a protruding lip on top that the chuck has to get around to torque the cap onto the bottle. Whether to use the mechanical or pneumatic is a choice determined by the machine and how it is set up.
If you are in the market for a reliable and affordable bottle capping chuck, you have come to the right place. At Precision Tork, we will already have a chuck for your application or we will custom engineer the perfect chuck for you. Whether you are looking for a standard capping chuck or a custom-designed chuck, we can help. Our team of experts can assist you in choosing the right product for your application and budget. Call us today to learn more about our products and services.
